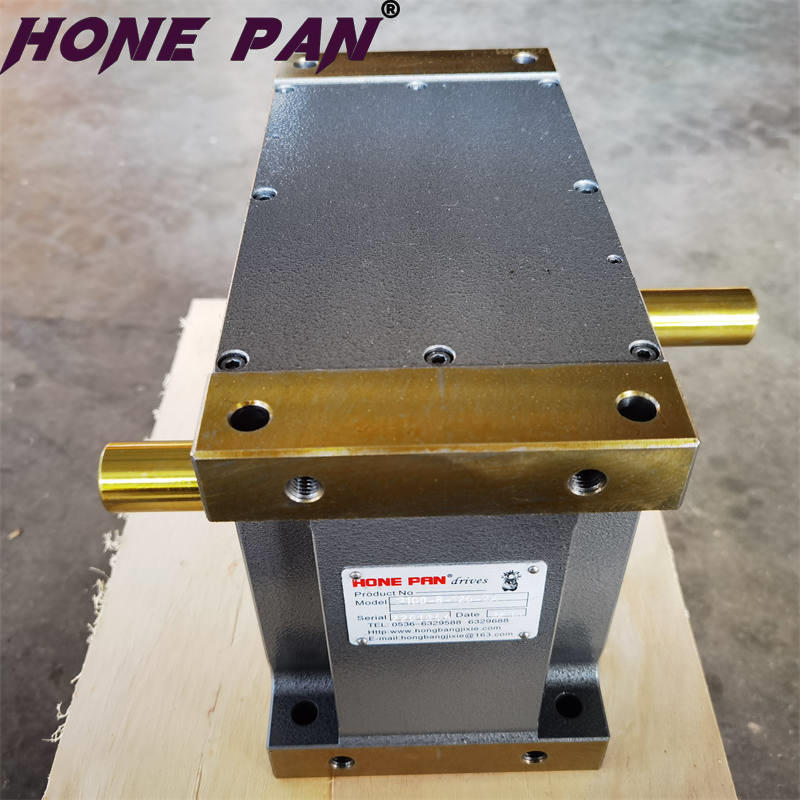

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery

Brand Name:	HONEPAN
Model Number:	DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS
MOQ:	≥1000 $
Price:	200 $/SET~4500 $/SET
Packaging Details:	PLYWOOD BOX
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

POSITIONAL ACCURACY:

±30 Arcse (±15 Arcse)

REPOSITIONING ACCURACY:

±4 Arcse(±2 Arcse)

Cam Material:

Default 42CrMoAl，Customizable

Hardness:

50HRC~72HRC ，Customizable

COLOUR:

DEFAULT GRAY (CUSTOMIZABLE)

Dimensions:

Customizable

Warranty:

1year

Longest Lifespan:

60000 Hours

Supply Ability:

5000 SET/MONTH

Highlight:

industrial cam indexers

industrial cam indexing drive

machinery cam indexers

Product Description

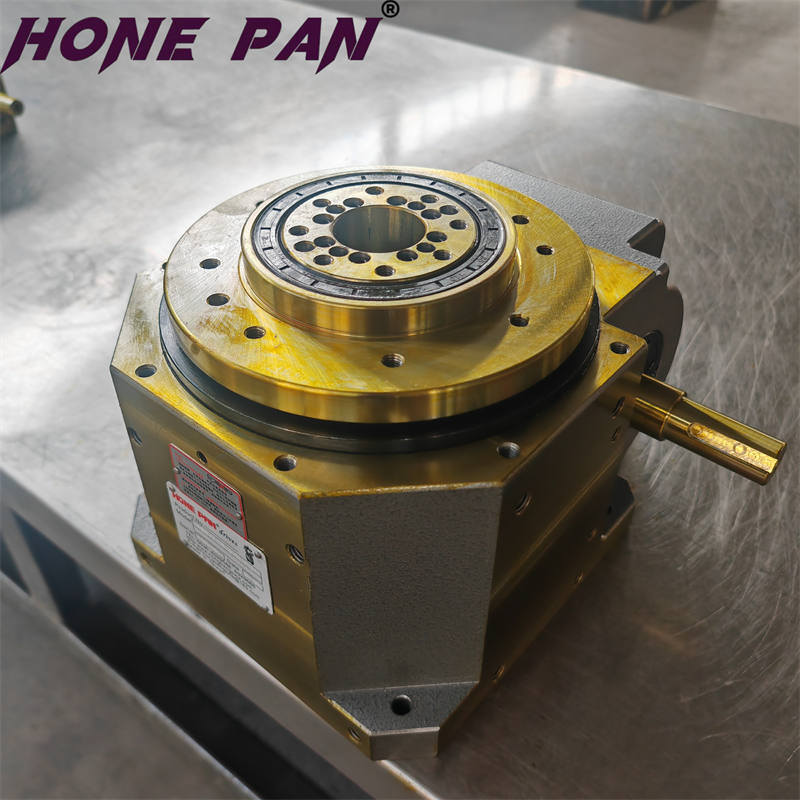

DT Series Fixed Index Cam Indexer / Standard Indexing Drives

DT Series Platen-Type Indexer

Engineered for heavy-load applications and vertical radial pressure resistance, the DT Series features a raised stationary flange designed for mounting dynamic and static automation interfaces. The hollow shaft configuration accommodates power transmission lines including electrical, hydraulic, and pneumatic systems, while the large rotating flange provides secure mounting for heavy-duty rotary components.

This robust indexing drive is widely implemented in heavy-load automation systems and industrial machinery applications where reliability and durability are critical.

Available Models

The DT Series is available in multiple configurations based on input-to-output shaft distance, cabinet size, and load capacity:

80DT
110DT
140DT
180DT
200DT
210DT
250DT
350DT

80DT
Item	Symbol	Unit	Value
Allowable Radial Load of Output Shaft	C1	kgf	510
Allowable Axial Load of Output Shaft	C2	kgf	210
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	215
Maximum Bending Moment of Input Shaft	C4	kgf	155
Maximum Torque of Input Shaft	C5	kgf-m	9.3
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	0.03
Positioning Indexing Accuracy		sec.	±30
Weight		kg	22

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery 0

110DT
Item	Symbol	Unit	Value
Allowable Radial Load of Output Shaft	C1	kgf	850
Allowable Axial Load of Output Shaft	C2	kgf	410
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	295
Maximum Bending Moment of Input Shaft	C4	kgf	245
Maximum Torque of Input Shaft	C5	kgf-m	24
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	0.01
Positioning Indexing Accuracy		sec.	±30
Weight		kg	52

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery 1

140DT
Item	Symbol	Unit	Value
Allowable Radial Load of Output Shaft	C1	kgf	1030
Allowable Axial Load of Output Shaft	C2	kgf	705
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	495
Maximum Bending Moment of Input Shaft	C4	kgf	340
Maximum Torque of Input Shaft	C5	kgf-m	51
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	0.07
Positioning Indexing Accuracy		sec.	±30
Weight		kg	87

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery 2

180DT
Item	Symbol	Unit	Value
Allowable Radial Load of Output Shaft	C1	kgf	1480
Allowable Axial Load of Output Shaft	C2	kgf	1080
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	1190
Maximum Bending Moment of Input Shaft	C4	kgf	950
Maximum Torque of Input Shaft	C5	kgf-m	216
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	0.23
Positioning Indexing Accuracy		sec.	±30
Weight		kg	190

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery 3

200DT
Item	Symbol	Unit	Value
Allowable Radial Load of Output Shaft	C1	kgf	1800
Allowable Axial Load of Output Shaft	C2	kgf	1300
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	1400
Maximum Bending Moment of Input Shaft	C4	kgf	1050
Maximum Torque of Input Shaft	C5	kgf-m	440
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	0.62
Positioning Indexing Accuracy		sec.	±30
Weight		kg	450

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery 4

210DT
Item	Symbol	Unit	Value
Allowable Radial Load of Output Shaft	C1	kgf	1950
Allowable Axial Load of Output Shaft	C2	kgf	1520
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	1570
Maximum Bending Moment of Input Shaft	C4	kgf	1130
Maximum Torque of Input Shaft	C5	kgf-m	460
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	0.62
Positioning Indexing Accuracy		sec.	±30
Weight		kg	450

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery 5

250DT
Item	Symbol	Unit	Value
Allowable Radial Load of Output Shaft	C1	kgf	2400
Allowable Axial Load of Output Shaft	C2	kgf	1700
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	1800
Maximum Bending Moment of Input Shaft	C4	kgf	2200
Maximum Torque of Input Shaft	C5	kgf-m	665
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	0.86
Positioning Indexing Accuracy		sec.	±30
Weight		kg	500

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery 6

350DT
Item	Symbol	Unit	Value
Allowable Radial Load of Output Shaft	C1	kgf	4300
Allowable Axial Load of Output Shaft	C2	kgf	3100
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	2700
Maximum Bending Moment of Input Shaft	C4	kgf	3700
Maximum Torque of Input Shaft	C5	kgf-m	990
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	2.7
Positioning Indexing Accuracy		sec.	±30
Weight		kg	1200

Heavy Load Handling Cam Indexers With Hollow Shaft For Industrial Machinery 7
